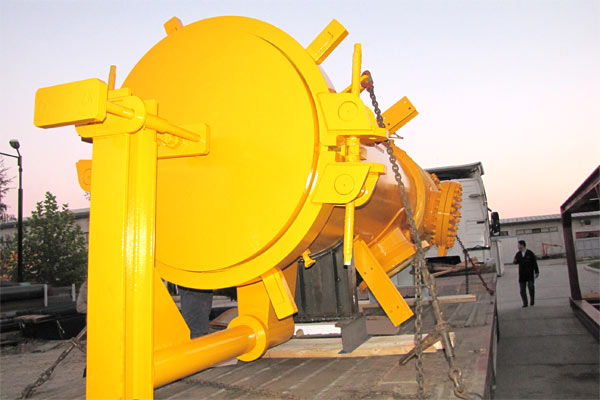

Separation Filtration Battery Onesti, Romania

Filter separators Onesti DN 500 ANSI 300:
Filter separator: vertical two-stage FS 643
Inlet/ outlet connection: DN 500
Inlet/ outlet flanges: ANSI 300
Ambient temperature: -30°C...+40°C
Volumetric flow rate: 60 000 Nm3/ h
Design pressure: 40 bar

The battery is provided with:

• coalescer cartridge unit – multi-layered cartridge
• distributor
• differential pressure gauge mounted on the inlet and outlet connections
• water pneumatic discharge automated system
• magnetic level indicator
• safety valve

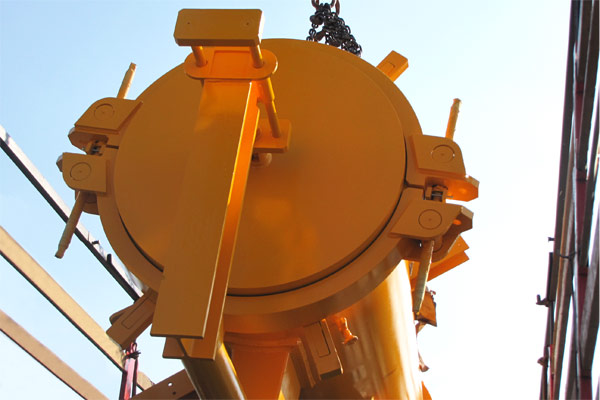

• quick opening closure
• manhole
• separator insulation of 80 mm thickness and electrical heating cable system
•
