Separation-filtration battery SRMP Termo Cuci

Separation-filtration battery SRMP Termo Cuci
Filter separators FS 641 DN 400 PN 40
Technical characteristics:
- nominal pressure: 40 bar
- connections: DN 400
- body: DN 1000
- maximum flow rate: 180 000 Nmc/h
- working temperature: -30...+60° C
The battery is provided with:
- axial cyclone separator
- Velcon filtration cartridges
- double bolt quick opening closures
- manual purge
- pressure gauge and differential pressure gauge
- safety valve
- liquid storage compartment insulation
- manhole
- access platform and stairs

SIMILAR EQUIPMENT

Separation Filtration Battery Onesti



PHOTO GALLERY

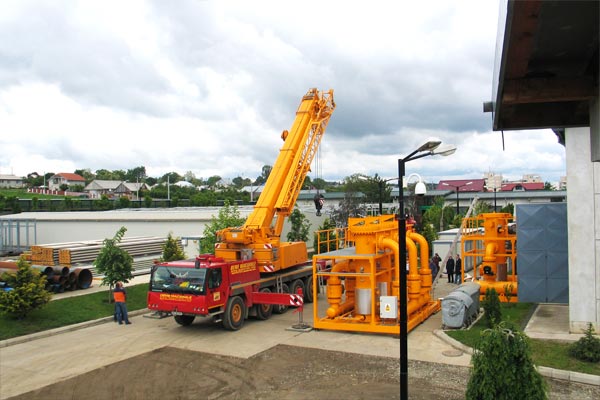

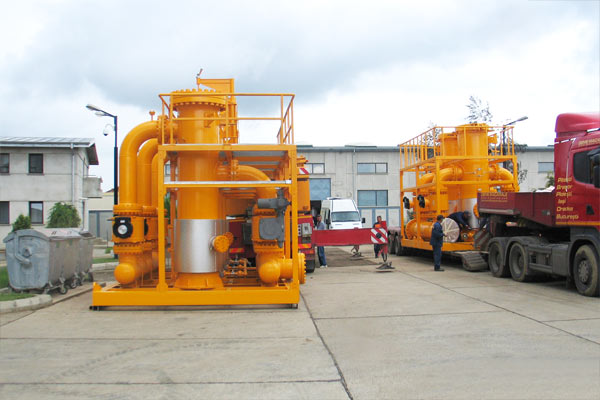

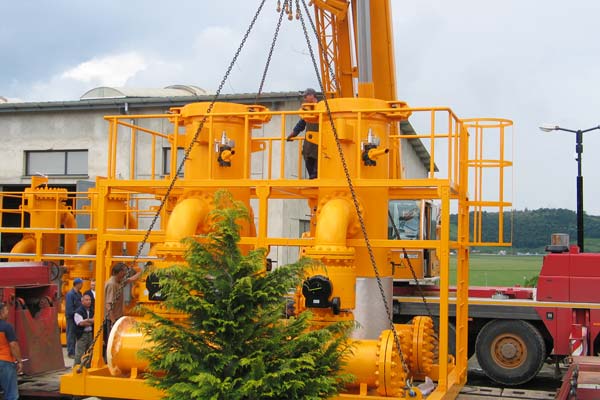

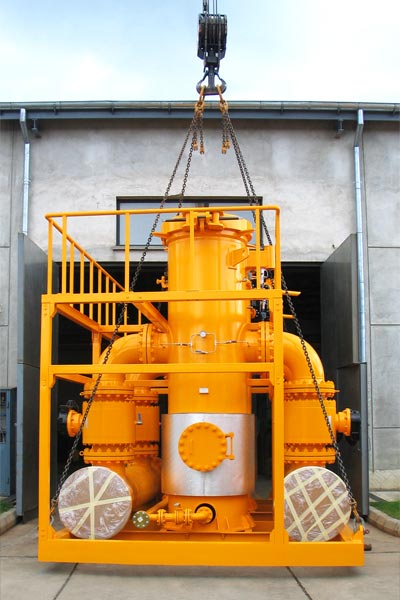

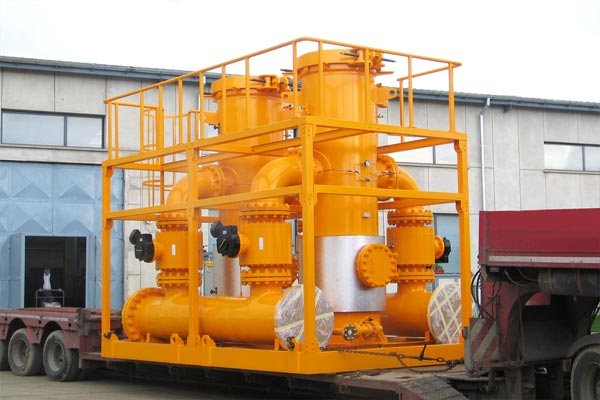

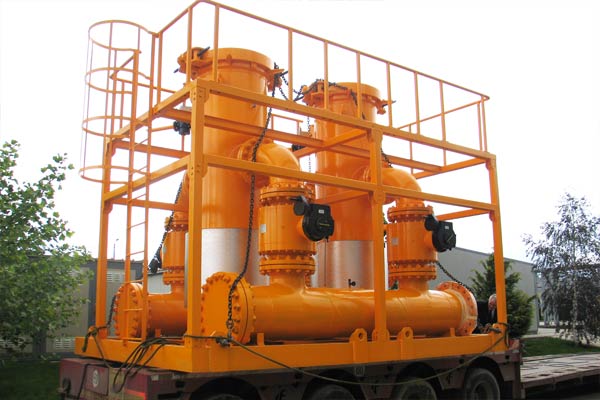

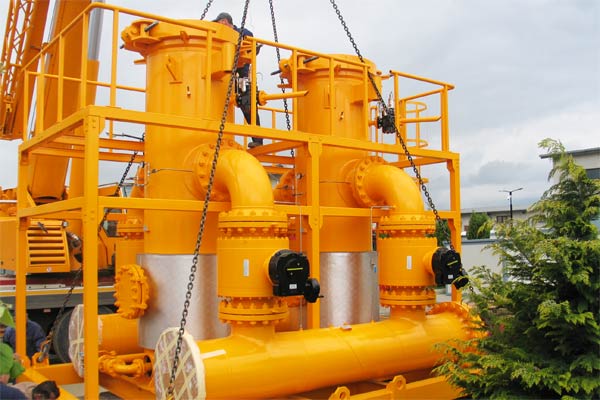

  • Separation-filtration battery SRMP Termo Cuci
