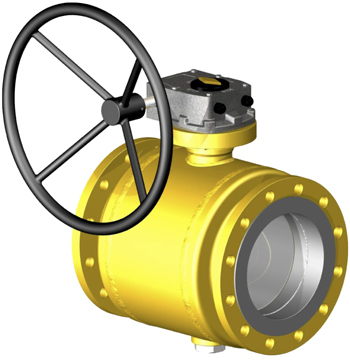

RS 900 ball valves are fully welded constructions that need very little maintenance. The sealing is ensured by metallic seats with different constructive variants. The seats are designed so that the force pressing on the ball increases as the pipe pressure rises.
Upon request, the valves can be provided with graphite gaskets for the fire-safe design or with an additional sealing for emergency cases by sealant injection.
The weld ends and the flanges are protected with covers to prevent deterioration or ingress of impurities into the valve.
| NOMINAL DIAMETER | DN 50 ÷ DN 1200 |
|---|---|
| PRESSURE CLASS |
PN 16 ÷ PN 420 Class 150 ÷ Class 2500 |
| TIGHTNESS TEST | Acc. to ISO 5208/ API 6D/ API 598/ EN 1226 |
| PROCESS CONNECTION |
By means of flanges acc. to ASME B 16.5/ ASME B 16.47/ SR EN 1092 By means of weld ends acc. to ASME B 16.25 |
| ACTUATOR ATTACHMENT FLANGE | Acc. to ISO 5211 |
| CONSTRUCTIVE TYPE |
Acc. to ISO 14313 / ISO 10423 / API 6D / SR EN 17292 / SR EN 1983 |
| MATERIALS | Acc. to EN / ASTM / AISI |
| FACE-TO-FACE DIMENSIONS | Acc. to SR EN 558 / API 6D |
| WELDING | Acc. to SR EN ISO 15614 |
| “FIRE-SAFE” DESIGN | Acc. to API 6FA / API 607 / ISO 10497 |
| TEMPERATURE RANGE | -30°C ÷ +120°C |
| WORKING MEDIUM TEMPERATURE | -20°C ÷ +60°C (upon request, -50°C ÷ +200°C) |
| WORKING MEDIUM | Natural gases and other non-corosive fluids |
