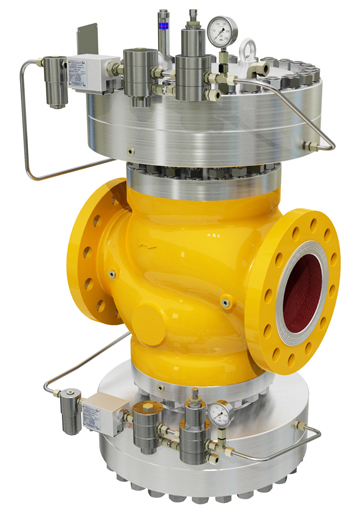

  • RTG 413 M

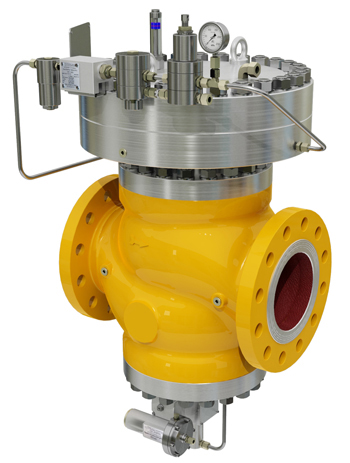

  • RTG 413 SB

CONTROL VALVES

Pilot operated pressure regulator

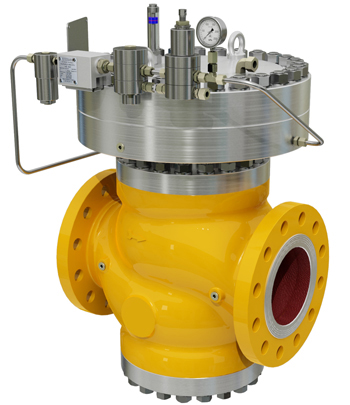

RTG 413

MAIN CHARACTERISTICS of
Pilot operated pressure regulator RTG 413

RTG 413 regulators are of indirect action type and are used for reducing and regulating the pressure of non-corrosive gases (natural gases, LPG, etc.). The regulators ensure constant maintenance of outlet pressure within the limits of the regulation class, irrespective of the fluctuations of inlet pressure and flow rate. They are designed for natural gas transportation and distribution networks. RTG 413 regulators can be used for all installations with rapid variations of the flow rate. The highly special performance of the pilot system ensures pressure accurate regulation and regulator rapid response.
Reference standards: EN 334 and EN 14382
CE Certificate according to PED 97/23/EC

MODEL RTG 413 • RTG 413 SB • RTG 413 M
TECHNICAL CHARACTERISTICS Maximum allowable pressure: 40/50, 100 bar
Inlet pressure range:
0,5 ÷ 100 bar
0,5 ÷ 40/50 bar
Outlet pressure range: 0,5 ÷ 75 bar
Minimum working differential pressure: 0,5 bar
Accuracy class (AC): ±1 ÷ 2,5%
Lock-up pressure class (SG): 1 ÷ 2,5%
Intervention accuracy class (AG):
- minimum up to 2,5%
- maximum up to 1%
(depending on the control pressure)
CONSTRUCTIVE  CHARACTERISTICS Normally closed
Normally open (RTG 413 FTO)
CONNECTION TYPE Equal flanges:
PN 25 ÷  PN 50/ANSI Class 300
PN 64 ÷ PN 110/ ANSI Class 600
Nominal diameter:  DN 25 ÷ DN 300
OPTIONAL ACCESSORIES Incorporated silencer (AM)
Minimum/maximum safety shut-off valve (SB)
Monitor (M)
Pilot electric gas preheater (WE)
OPERATING  CONDITIONS Ambient temperature: -30°C ÷ +80°C
Working fluid temperature: -20°C ÷ +60°C
WORKING MEDIUM Natural gas and other non-corrosive gases
