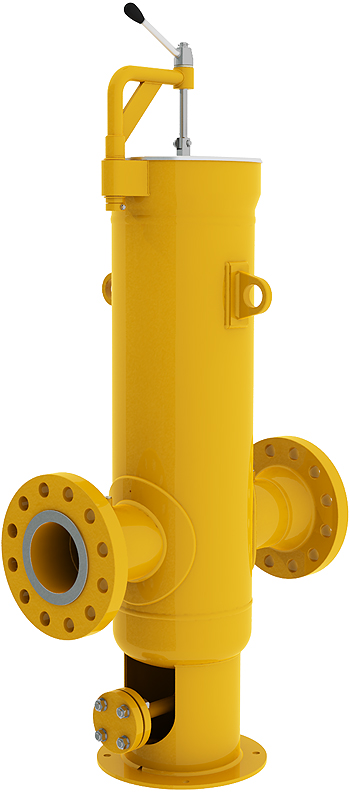

FTG 602

GAS TREATMENT EQUIPMENT

Gas filters

FTG 602

MAIN CHARACTERISTICS of
Gas filters FTG 602

Reference standard: EN 13445 or ASME BPVC Sec. VIII
CE certificate according to PED 97/23/EC

MODEL FTG 602
TECHNICAL CHARACTERISTICS Type: filtering cartridge
Inlet-outlet connection angle: 180° or 90°
Filtering material:
- stainless steel screen
- textile (PES, PP, PPS)
- cellulose
Filtration rating:
- 160, 300 µm - stainless steel screen
- 3÷50 µm - textile (PES, PP, PPS)
- 3÷50 µm - cellulose
Filter pressure drop: max. 1 bar
Particle collection capacity: min 12% of total filter capacity
CONNECTION TYPE Equal flanges: PN 16 ÷ PN 100/ANSI Class 150 ÷ 600
Nominal diameter: DN 25 ÷ DN 500
ACCESSORIES Drain:
 - manual: valve
 - automatic: control drainer
Filter clogging degree:
 - differential pressure gauge
 - differential contact pressure gauge
 - differential pressure gauge with 4-20 mA signal
Filter pressure:
 - pressure gauge
 Filter connection to the pipeline network:
 - counter flanges, gaskets, fasteners
OPERATING  CONDITIONS Ambient temperature: -20 ÷ 80°C (optionally, -30 ÷ 80)°C
Working fluid temperature: -10÷60°C (optionally, -20 ÷ 60)°C
WORKING MEDIUM Natural gas or other non-corrosive gases
