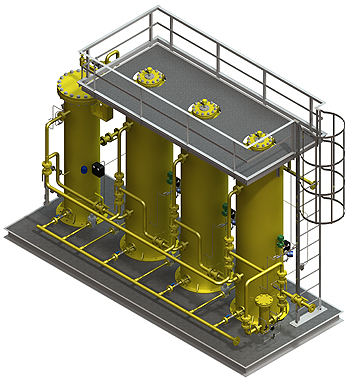

SU-AD.D unitsare based on desiccant water attracting properties. When exposed to entrained water vapor, the solid desiccant turns into a solution that flows at the bottom of the dryer. The used desiccant must be replaced periodically depending on gas flow, gas pressure, temperature and humidity.
| MODEL | SU-AD.D |
|---|---|
| TECHNICAL CHARACTERISTICS |
Nominal flow rate: Q = 10.000 ÷ 12.000.000 Nm³/day Nominal pressure: 6, 16, 25, 40, 50, 64, 80, 100, 150, 250 bar Role: to remove water vapour from natural gas stream at gas field/underground natural gas storage facility well - natural gas national transportation system Type: water vapour adsorption from the natural gas stream by means of desiccants Dehydrated gas water content: corresponding to the dew point of the water entrapped in the natural gas < -15°C at the maximum working pressure (according to SR 3317:2003) or 7 lbs. water/mil. Sft³ (0,112 g water/Sm³) natural gas (according to API 12 GDU) |
| EQUIPMENT COMPONENTS |
Separator Adsorbers Gas filter Instrumentation Control panel which provides parameters display and data transfer |
