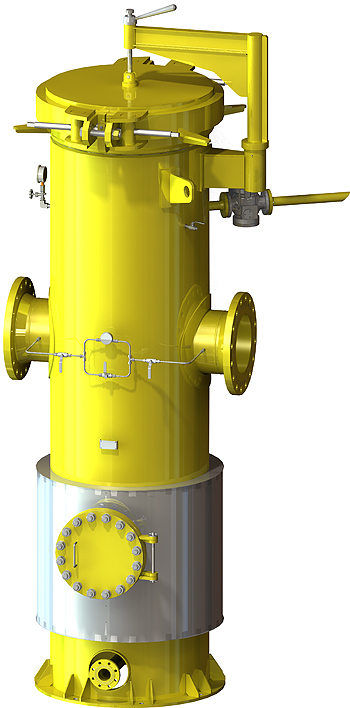

The FS 641 is a two-stage filter separator, where the first stage is an axial cyclone or a multicyclone bundle and the second stage consists of filter elements. Cellulose or glass fiber filter elements are usually employed, but other filtering media are also available. Depending on the size of the filter separator, one or more filter columns can be present.
The FS 641 filter separators can be used in the natural gas regulating and metering stations, gas delivery stations, gas dehydration units, compressor stations, etc., providing the separation of liquid fractions and solid contaminants for the protection of pipelines, equipment and devices which could be damaged because of particle-contaminated gas
Reference standard: EN 13445 or ASME BPVC Sec. VIII
CE certificate according to PED 97/23/EC
Code ASME Sec. VIII Div. 1 (ASME "U" stamp)
| MODEL | FS 641 |
|---|---|
| TECHNICAL CHARACTERISTICS |
Body nominal diameter: DN 150 ÷ DN 1000 Connection angle: 180° or, upon request, 90° Efficiency: - solid impurities: 99,9 % > 8 µm - liquid particles: 99,5 % > 3 µm |
| CONNECTION TYPE |
Nominal pressure: PN 6 ÷ PN 100 bar Nominal diameter: DN 25 ÷ DN 500 |
| OPTIONAL ACCESSORIES |
Quick opening closure Level indicator intended to monitor the liquid level in the collection chamber Level indicators/transmitters Minim-minimorum level signal Maxim-maximorum level signal Automatic impurities drain Thermal insulation Pressure gauge Differential pressure gauge Thermometer Collection chamber electrical heating Drain pipelines electrical heating Platform and access stairs etc. |
| OPERATING CONDITIONS |
Ambient temperature: -20 ÷ 80 (optionally, -30 ÷ 80)°C Working fluid temperature: -10 ÷ 60 (optionally, -20 ÷ 60)°C |
| WORKING MEDIUM | Natural gas or other non-corrosive gases |
