OD 830

GAS TREATMENT EQUIPMENT

Odorizer

OD 830

MAIN CHARACTERISTICS of

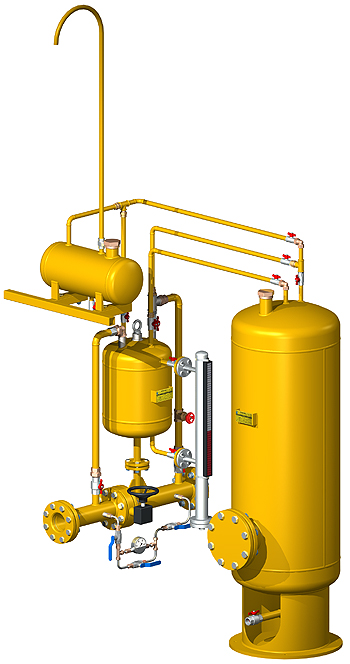

Odorizer OD 830

OD 830 odorizing system uses the evaporation principle to odorize natural gas. Specific adjustment devices are provided to control the gas odorizing degree. The odorant liquid storage tank is available in various storage capacities. The storage tank can be filled manually or automatically.
Reference standard: EN 13445
CE Certificate according to PED 97/23/EC

MODEL OD 830
TECHNICAL CHARACTERISTICS Maximum allowable pressure: 16, 25, 40, 64 bar
Total volume: 25, 50, 75, 100, 150, 200 liter
Odorant: Ethyl Mercaptan (EM), Tert-Butyl Mercaptan (TBM), Isopropyl Mercaptan (IPM), Tetrahydrothiophene (THT)
Diaphragm: depending on gas flow rate
Gas flow rate: 20 ÷12.000 Nm³/h
Materials: carbon steel, stainless steel, PTFE, Viton, glass, etc.
CONNECTION TYPE Equal flanges:PN 16, PN 20/ANSI 150
PN 25, PN 40, PN 50/ANSI 300
PN 64, PN 100, PN 110/ANSI 600
Nominal diameter: DN 50 ÷ DN 300
CONSTRUCTIVE VARIANTS By evaporation
OPERATING CONDITIONS Ambient temperature: -30 ÷ +80°C
Working fluid temperature: -20 ÷ +60°C
WORKING MEDIUM Natural gas or other non-corrosive gases.
