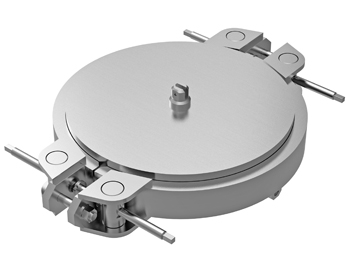

RC 2 quick opening closure is a mechanical unit that facilitates rapid and safe access to vessels internal components and that provides perfect tightness.
RC2 quick opening closure is fitted with a right- and left-handed thread screw and with a safety device that prevents the door from beeing unlocked under pressure.
CE Certificate according to PED 97/23/EC
| TECHNICAL CHARACTERISTICS |
Nominal diameter: DN 100 ÷ DN 1.600 Nominal pressure: PN 6 ÷ 400 bar Model: - by installation position H – for horizontal vessels V – for vertical vessels - by material type S – standard material J – low temperature service materials |
|---|---|
| OPERATING CONDITIONS |
Ambient temperature: -20 ÷ 80 (optionally, -30 ÷ 80)°C Working fluid temperature: -10 ÷ 60 (optionally, -20 ÷ 60)°C |
| WORKING MEDIUM | Natural gas or other non-corrosive gases |
