CONTROL VALVES

Direct acting pressure regulator

RTG 311

MAIN CHARACTERISTICS of

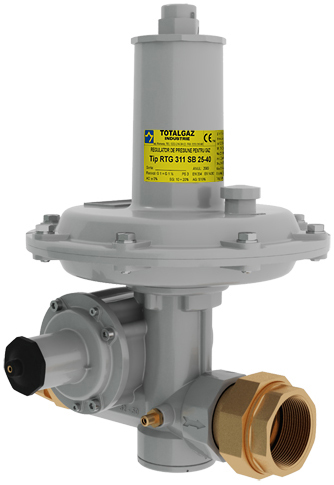

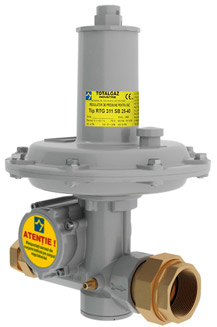

Direct acting pressure regulator RTG 311

RTG 311 pressure regulators are included within the direct acting and balanced valve regulators class. The regulator is used for reducing and regulating the pressure of natural gases and LPG, ensuring a constant value of the outlet pressure within the limits of the regulating class, irrespective of the fluctuations of inlet pressure and flow rate.
Reference standards: EN 334 and EN 14382
CE Certificate according to PED 97/23/EC


MODEL RTG 311 • RTG 311 SB
TECHNICAL CHARACTERISTICS Nominal flow rate: 35, 50, 100, 140 Nm³/h
Maximum allowable pressure: 6 bar
Inlet pressure range: 0,05 ÷ 2; 0,05 ÷ 6 bar
Outlet pressure range: 0,015 ÷ 0,2 bar
Accuracy class (AC): ±2,5 ÷ 10%
Lock-up pressure class (SG): 10 ÷ 30%
Intervention accuracy class (AG):
- minimum up to 2,5%
- maximum up to 1%
(depending on the control pressure)
CONSTRUCTIVE CHARACTERISTICS Fail open type
Balanced valve
Cast aluminum body
Incorporated relief valve
Incorporated filter
CONNECTION TYPE Inlet: G1, G1¼, G1½
Outlet: G1, G1¼, G1½, G2
OPTIONAL ACCESSORIES Minimul/maximum safety shut-off valve (SB)
Safety shut-off device for lack of gas feeding (DB) for G1"×G1", G1"×G1½"
OPERATING CONDITIONS Ambient temperature: -30°C ÷ +80°C
Working fluid temperature: -20°C ÷ +60°C
WORKING MEDIUM Natural gas and other non-corrosive gases
