SD 740

SAFETY DEVICES

Safety relief valve

SD 740

MAIN CHARACTERISTICS of

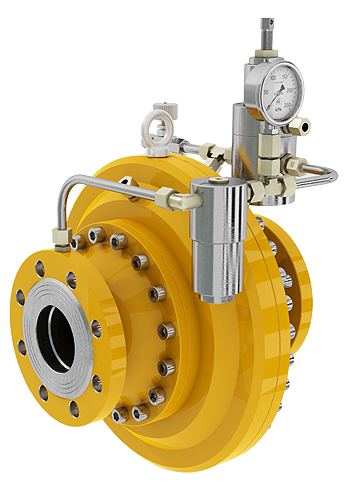

Safety relief valve SD 740

SD 740 devices are pilot-operated relief valves designed to open automatically when the value of the pressure in the system to be protected exceeds the preset value. The opening and closing of the main valve are controlled by a pilot device which is very sensitive to pressure variations.

Reference standard: EN ISO 4126 -4
CE certificate according to PED 97/23/EC

MODEL SD 740
TECHNICAL CHARACTERISTICS Maximum allowable pressure: 16/20, 40/50, 100 bar
Relief pressure: 0,04 ÷ 75 bar
Intervention accuracy class (AG): up to 1%
CONNECTION TYPE Equal flanges:PN 16, PN 20/ ANSI Class 150
PN 25, PN 40, PN 50 / ANSI Class 300
PN 64, PN 110/ ANSI Class 600
Nominal diameter: DN 25 ÷ DN 300
OPERATING  CONDITIONS Ambient temperature: -30°C ÷ +80°C
Working fluid temperature: -20°C ÷ +60°C
WORKING MEDIUM Natural gas and other non-corrosive gases
