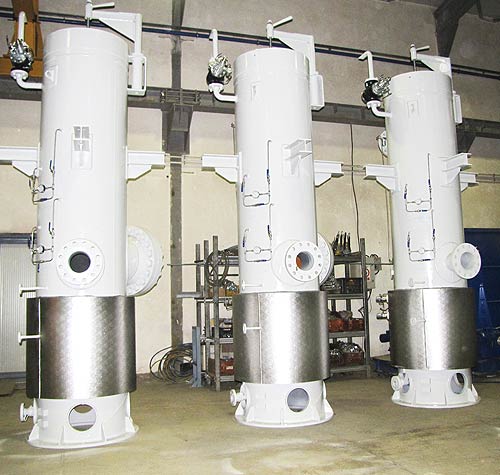

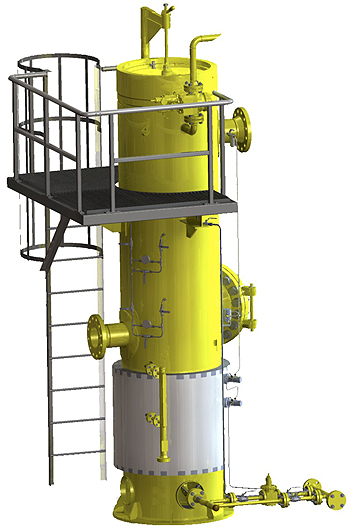

  • FS643 DN 200 PN 64 gas filter separator
  • FS643 DN 200 PN 64 gas filter separator

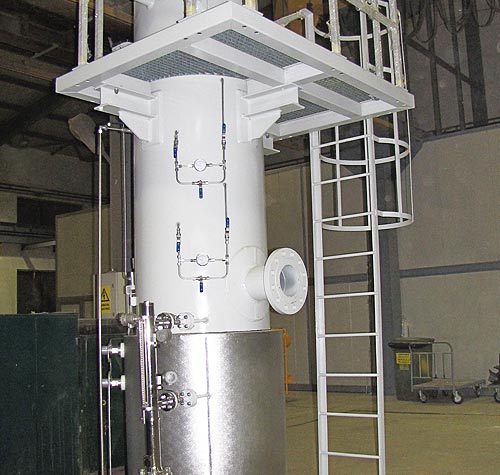

  • FS 643 DN 500 PN 40 gas filter separator

GAS TREATMENT EQUIPMENT

Gas filter separator

FS643

MAIN CHARACTERISTICS of
Gas filter separator FS643

The FS 643 is a vertical two-stage filter separator, where the first stage consists of a separation element (axial cyclone, multicyclone, distributor) and the second stage is a filtration element (filtering cartridges or coalescer cartridges).
Reference standard: EN 13445 or ASME BPVC Sec. VIII
CE certificate according to PED 97/23/EC
Code ASME Sec. VIII Div. 1 (ASME "U" stamp)

MODEL FS643
TECHNICAL CHARACTERISTICS Body nominal diameter: DN 250 ÷ DN 1200
Efficiency:
- solid impurities: 100 % > 3 µm
- solid impurities: 99 % 0,5 ÷ 3 µm
- liquid particles: 100% > 3 µm
CONNECTION TYPE Nominal pressure: PN 6 ÷ PN100 bar
Nominal diameter: DN 25 ÷ DN 500
OPTIONAL ACCESSORIES Quick opening closure
Level indicator intended to monitor the liquid level in the collection chamber
Level indicators/transmitters
Minim-minimorum level signal
Maxim-maximorum level signal
Automatic impurities drain
Thermal insulation
Pressure gauge
Differential pressure gauge
Thermometer
Collection chamber electrical heating
Drain pipelines electrical heating
Platform and access stairs etc.
OPERATING CONDITIONS Ambient temperature: -20 ÷ 80 (optionally, -30 ÷ 80)°C
Working fluid temperature: -10 ÷ 60 (optionally, -20 ÷ 60)°C
WORKING MEDIUM Natural gas or other non-corrosive gases
