SD 710

SAFETY DEVICES

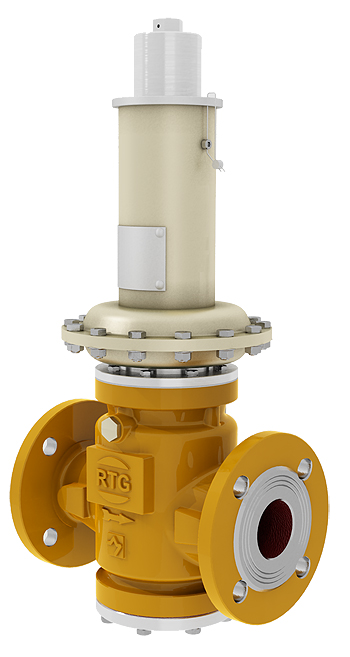

Safety relief valve

SD 710

MAIN CHARACTERISTICS of
Safety relief valve SD 710

SD 710 relief valve is a spring self-actuated valve. When the force exerted by the fluid pressure is greater than the force exerted by the spring, the valve opens automatically allowing the fluid to exit the valve. Relief valves are safety devices which prevent the maximum allowable working pressure in the system from being exceeded. Direct acting relief valves are suitable for air, natural gas, liquefied petroleum gas and CO2.

Reference standard: EN ISO 4126-1
CE certificate according to PED 97/23/EC

MODEL SD 710
TECHNICAL CHARACTERISTICS Nominal pressure: 16 / 20 bar
Relief pressure: 0,04 ÷ 6 bar
Counter pressure: atmospheric pressure
Intervention accuracy class (AG): ÷2,5%
CONNECTION TYPE Equal flanges: PN 16, PN 20/ANSI 150
Nominal diameter: DN 25 ÷ DN 150
OPERATING CONDITIONS Ambient temperature: -30°C ÷ +80°C
Working fluid temperature: -20°C ÷ +60°C
WORKING MEDIUM Natural gas and other non-corrosive gases
