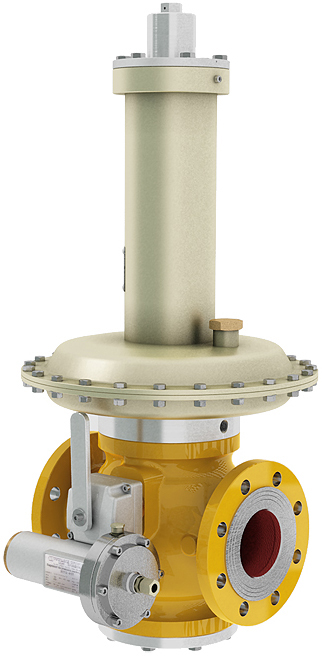

  • RTG 320 SB

CONTROL VALVES

Direct acting pressure regulator

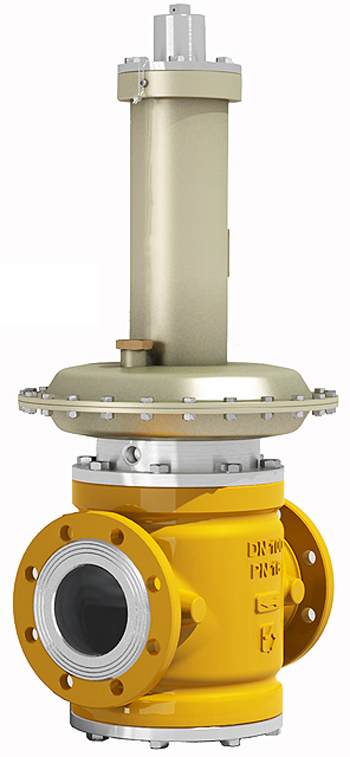

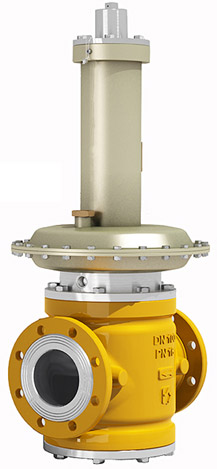

RTG 320

MAIN CHARACTERISTICS of
Direct acting pressure regulator RTG 320

The pressure regulators included in the RTG 320 family are direct acting regulators with balanced valve. The regulators are used for reducing and regulating the pressure of LPG and natural gases, ensuring a constant value of the outlet pressure, within the limits of the regulation class, irrespective of the fluctuations of inlet pressure and flow rate.
Reference standards: EN 334 and EN 14382
CE Certificate according to PED 97/23/EC


MODEL RTG 320 • RTG 320 SB
TECHNICAL CHARACTERISTICS Maximum allowable pressure: 6 bar
Inlet pressure range: 0,05 ÷ 6 bar
Outlet pressure range: 0,015 ÷ 2 bar
Accuracy class (AC): ±2,5 ÷ 10%
Lock-up pressure class (SG): 5 ÷ 30%
Intervention accuracy class (AG):
- minimum up to 2,5%
- maximum up to 1%
(depending on the control pressure)
CONSTRUCTIVE  CHARACTERISTICS Fail open type
Balanced valve
Cast steel body
CONNECTION TYPE Equal flanges: PN 16 ÷ PN 20/ANSI Class 150
Nominal diameter: DN 25 ÷ DN 300
OPTIONAL ACCESSORIES Minimum/maximum safety shut-off valve (SB)
Incorporated silencer (AM)
OPERATING CONDITIONS Ambient temperature: -30°C ÷ +80°C
Working fluid temperature: -20°C ÷ +60°C
WORKING MEDIUM Natural gas and other non-corrosive gases
