Gas separator

STG 652

MAIN CHARACTERISTICS of
Gas separator STG 652

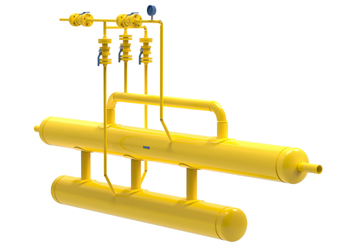

STG 652 horizontal gas separator, intended for underground installation, is a mechanical device designed to remove and collect solid and liquid impurities existent in the gas flow in order to protect the pipelines, equipment and devices which could be damaged because of particle-contaminated gas. The STG 652 is a welded construction vessel, provided for the solid and liquid particles separation based on gravity; it can be used in the gas regulating and metering stations, gas delivery stations, gas dehydration units etc.
Reference standard: EN 13445 or ASME BPVC Sec. VIII
CE certificate according to PED 97/23/EC
Code ASME Sec. VIII Div. 1 (ASME "U" stamp)

MODEL STG 652
TECHNICAL CHARACTERISTICS Body nominal diameter: DN 100 ÷ DN 600
Efficiency:
- solid impurities: 99 % > 15 µm
- liquid particles: 99 % > 10 µm
CONNECTION TYPE Nominal pressure: PN 16 ÷ PN 100 bar
Nominal diameter: DN 25 ÷ DN 300
OPTIONAL ACCESSORIES Automatic drain device
Level indicator
OPERATING CONDITIONS Ambient temperature: -20 ÷ 80 (optionally, -30 ÷ 80)°C
Working temperature: -10 ÷ 60 (optionally, -20 ÷ 60)°C
WORKING MEDIUM Natural gas or other non-corrosive gases
