WE 860

GAS TREATMENT EQUIPMENT

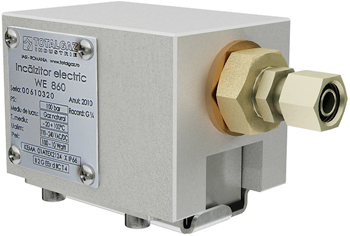

Pilot electric preheater

WE 860

MAIN CHARACTERISTICS of
Pilot electric preheater WE 860

WE 860 electric gas preheaters are designed to be mounted in the circuit of the pilot equipment which controls pilot-operated pressure regulators.
Heating elements certification: KEMA 01 ATEX 2124 X

MODEL WE 860
TECHNICAL CHARACTERISTICS Maximum working pressure: 100 bar
Power supply: 100/240 V a.c.
Power consumption: 100 ÷ 10 W
Maximum surface temperature of the heating element: 70 °C
CONNECTION TYPE Inlet: G¼, Ø10
Outlet: G¼, Ø10
OPERATING CONDITIONS Ambient temperature: -30 °C ÷ +80 °C
Working temperature: -20 °C ÷ +60 °C
WORKING MEDIUM Natural gas or other non-corrosive gases

MORE INFORMATION
Pilot electric preheater WE 860
