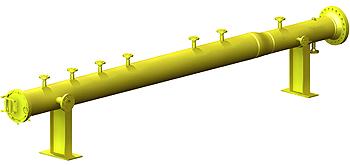

PIG launching/receiving stations are facilities that provide PIG launching and receiving for different applications: cleaning, incrustations and deposits removal, condensate removal from the pipeline, separation of products pumped one after another within the same pipeline, inspection, detection and monitoring, measurement and control, service.
PIG launching/receiving station main components: PIG launching chamber, quick opening closure, PIG holder, revolving crane, carriage, pusher, hoist, safety shut-off valve, pressure indicator, PIG passage signaller.
Reference standard: EN 13445
CE Certificate according to PED 97/23/EC
| TECHNICAL CHARACTERISTICS |
Nominal diameter: DN 200 ÷ DN 1100 Nominal pressure/pressure class: PN 25 ÷PN 100 bar/ANSI 300, ANSI 600 Intended to be used in: pipelines |
|---|---|
| OPERATING CONDITIONS | Ambient temperature: -30 ÷ +50°C |
