GAS TREATMENT EQUIPMENT

Direct fired gas heaters

WTG 635

MAIN CHARACTERISTICS of
Direct fired gas heaters WTG 635

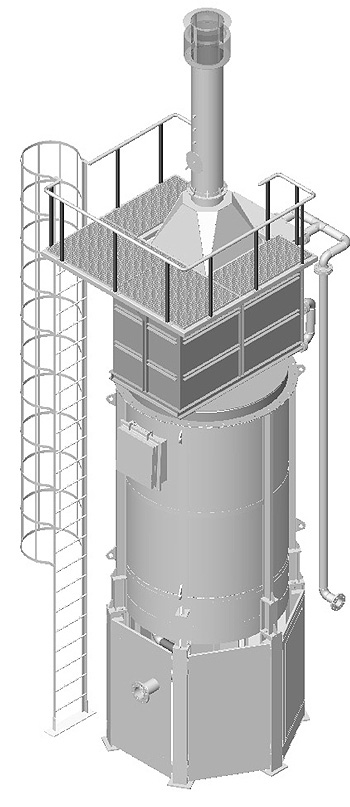

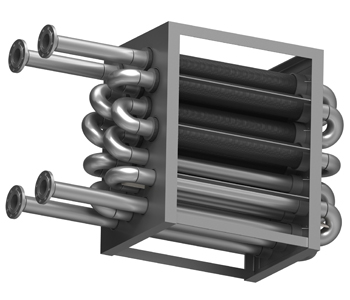

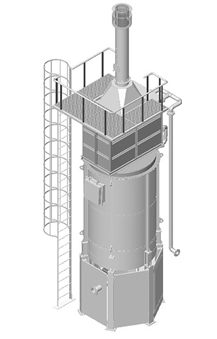

WTG 635 heaters are horizontal or vertical direct heaters. The WTG 635 gas heaters are designed to heat the gas in order to be used in different processes requiring high temperature gas. The working principle consists of heat transfer from the burner flame to the coil containing the gas to be heated, by means of convection and direct radiation.
Reference standard: EN 13705

MODEL WTG 635 C • WTG 635 MC
TECHNICAL CHARACTERISTICS Heat duty: 50.000 ÷ 5.200.000 kcal/h
CONNECTION TYPE Nominal pressure:up to 345 bar
Nominal diameter:DN 50 ÷ DN 250
FUNCTIONAL CHARACTERISTICS WTG 635 heaters can be:
- automatic
- non-automatic
Fuel burning process can be performed by means of:
- natural gas burner
- Diesel-oil burner
- mixed burner
Burners can be:
- atmospheric burners
- forced draft burners
OPTIONAL ACCESSORIES Silencer on the exhaust chimney
Spark arrester/flame arrester
Temperature sensors - record the inlet/outlet gas temperature
Pressure sensors - record the inlet/outlet gas pressure

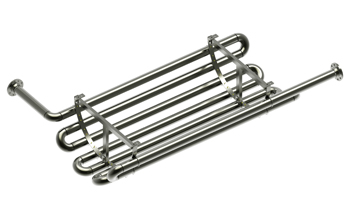

Temperature sensor - monitors the radiant coil temperature
Temperature sensors - monitor the stack fuel gas temperature
Thermometer - indicates inlet/outlet gas temperature
Pressure gauges - indicate inlet/outlet gas pressure in the pressure equipment
Weatherproof cabinet protects the control equipment and control panel
OPERATING CONDITIONS Ambient temperature: -30 ÷ 60°C
WORKING MEDIUM Natural gas or other non-corrosive gases
