OD 832 odorizing system uses the injection principle to odorize natural gas. The control unit of the system receives from a meter a signal proportional to the gas volume, processes it and establishes the number of strokes of the metering pump / the number of openings of the solenoid valve. The control unit maintains the required odorization rate. The odorizant is supplied by a working tank that is also connected to a larger storage tank. The storage tank is filled by means of an automated installation from interchangeable tanks. The system allows parameters entering / changing, signaling of emergency situations, display / handling errors.
Reference standard: EN 13445
CE Certificate according to PED 97/23/EC

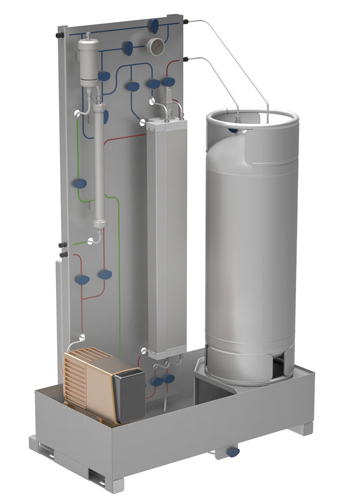

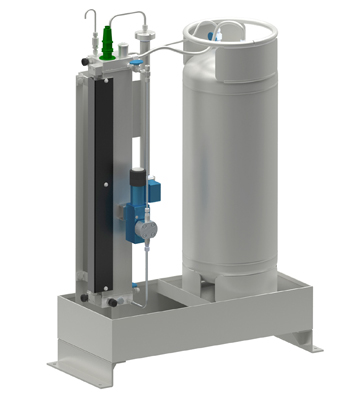

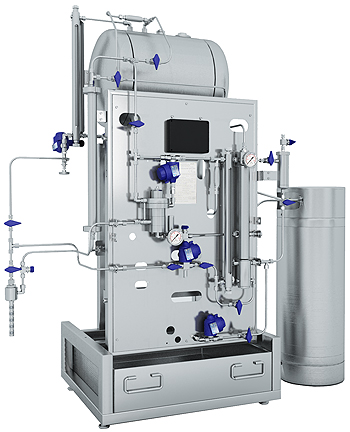

| MODEL | OD 832 LW • OD832 P • OD832 E |
|---|---|
| TECHNICAL CHARACTERISTICS |
Maximum allowable pressure: 16, 25, 40, 64, 100 bar Working tank: 7, 10, 20, 25, 30 liter Supply tanks: 50, 100, 200 liter (upon request, greater capacity tanks can also be provided) Odorant: Ethyl Mercaptan (EM), Tert-Butyl Mercaptan (TBM), Isopropyl Mercaptan (IPM), Tetrahydrothiophene (THT) etc. Odorized gas flow rate: 25 ÷ 500.000 Nm³/h Supply voltage: 220V, 50Hz/110V, 60 Hz/12VCC Materials: stainless steel, PTFE, Viton, glass etc. |
| CONNECTION TYPE | Union G¾", G1" |
| OPTIONAL ACCESSORIES |
Micro flow meter Washing installation Level indicators Alarm and odorizing rate storage Thermally insulated and heated stainless steel cabinet |
| OPERATING CONDITIONS |
Ambient temperature: -30 ÷ +80°C Working fluid temperature: -20 ÷ +60°C |
| WORKING MEDIUM | Natural gas or other non-corrosive gases |
