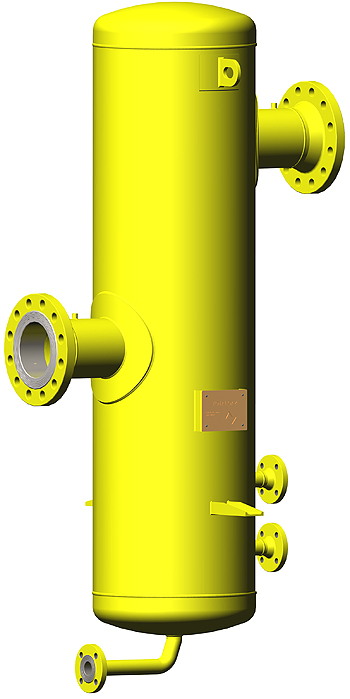

STG 651 vertical gas separator is designed to remove and collect solid and liquid impurities existent in the gas flow in order to protect the pipelines, equipment and devices which could be damaged because of particle-contaminated gas.
STG 651 is a welded construction vessel, inward provided with an axial cyclone in order to separate impurities. It can be used in the gas regulating and metering stations, gas delivery stations, gas dehydration units, compressor stations etc.
Reference standard: EN 13445 or ASME BPVC Sec. VIII
CE certificate according to PED 97/23/EC
Code ASME Sec. VIII Div. 1 (ASME "U" stamp)
| MODEL | STG 651 |
|---|---|
| TECHNICAL CHARACTERISTICS |
Body nominal diameter: DN 100 ÷ DN 1100 Connection angle: 180º or, upon request, 90º Collection capacity: 35 % of the separator capacity Efficiency: - solid impurities: 99 % > 15 µm - liquid particles: 99 % > 10 µm |
| CONNECTION TYPE |
Nominal pressure: PN 6 ÷ PN 100 bar Nominal diameter: DN 25 ÷ DN 500 |
| OPTIONAL ACCESSORIES |
Level indicator to monitor the liquid level in the collection chamber Level indicators/transmitters Minim-minimorum level signal Maxim-maximorum level signal Automatic impurities drain Thermal insulation Pressure gauge Differential pressure gauge Thermometer Collection chamber electrical heating Drain pipelines electrical heating etc. |
| OPERATING CONDITIONS |
Ambient temperature: -20 ÷ 80 (optionally, -30 ÷ 80)°C Working temperature: -10 ÷ 60 (optionally, -20 ÷ 60)°C |
| WORKING MEDIUM | Natural gas or other non-corrosive gases |
